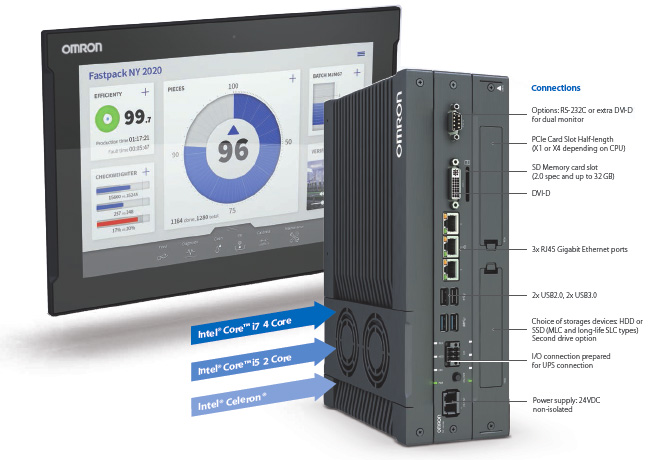

OMRON Industrial PC Platform NY-series Industrial Box PC

Omron NY Industrial PC has been designed from first principles to be powerful, reliable and scalable, making it ideally suited to visualization, data handling, measuring and controlling. We’ve simplified the design and build to eliminate faults caused by complexity and, with other unique design features, to maximize uptime and reduce costs. The future will be IT driven: Omron’s IPC platform will make you part of it.
Performance:

  • Based on fourth-generation Intel® Celeron® to Intel® CoreTM i7 processors
  • Up to 8 GB DDR3L RAM
  •  Intel® HD Graphics
  • Unique heatsink effectiveness
  • RoHS Directive (2002/95/EC), EU directives

Product Webpage




Advantech 18.5” All-around IP65 Touch Panel Computer with Waterproof M12 Connectors

With its all-encompassing IP65 certified design the SPC-1881WP is a 18.5” widescreen multi touch stationary panel PCs with Intel® Core™ i3-4010U 1.70 GHz Processor, specifically designed to provide easier operation and boost productivity in areas that require frequent jet washing.

A slender, elegant aluminum housing not only emphasizes modernity but also offers all-around IP65 protection displaying superb mechanical stability and reliability. M12 connectors and the integrated VESA connector allows the device to withstand high water pressure from cleaning and offers a high level of waterproofing in humid environments. In areas such as food and beverage, and chemical manufacturing where frequent cleaning is a necessity, the SPC is ideal as it and itsconnectors are protected against dust and water to enable them to survive the rigors of jet washing and scrubbing whilst they are hung on either pedestals or pendants.

To further aid this, it features a widescreen with a ratio of 16:9, providing 40% more screen area than 4:3 displays. Furthermore, with the addition of multitouch capabilities they provide even greater control and viewing of SCADA information.

All of this is made possible with the inclusion of an Intel® Core™ i3-4010U 1.70 GHz Processor with independent graphical processing unit which provides support for Windows 10 and DirectX11 so it can handle more complicated and detailed graphics.

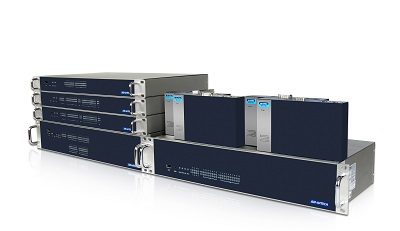

TUV Certified IEC-61850-3 Industrial PC

IEC-61850 is the specific standard for smart substations and defines the Ethernet protocol to be used for data communication and defines how devices in the substation communicate with each other. IEC-61850-3 devices need to meet electromagnetic Interference (EMI), temperature, and shock/vibration resistance requirements.

The Intel Core Haswell i7 CPU of the ECU-4784 supports Intel functionality. Intel AMT is an independent design of the operating system and enables it to be monitored and managed, regardless of whether it’s switched on or if the operating system has frozen.

To aid system integrators in building their systems, the ECU-4784 features dual expansion slots which can be used to significantly increase the number of COM, LAN, I/O ports.

Included with the ECU-4784 is the following value added functions: iCDManager (intelligent connectivity diagnosis manager), TPM (Trusted Platform Module), AMT (Active Management Technology) and VT-D (Virtualization Technology for Directed I/O).
iCDManager checks the system communication status and can quantitatively measure the status. It helps ECU-4784 series enhance maintenance efficiency and ensure system operated smoothly.

TPM is an integrated motherboard chip and provides basic security-related functions, primarily involving encryption keys. Its purpose is to check the system integrity and authenticate third-party users who would like to access the security features. Therefore, the privacy and confidentiality of the ECU-4784 series are assured.

The Intel CPU of ECU-4784 supports Intel VT-D functionality by using the VT-D hardware assistance built into Intel’s chipsets. The VT-D provides the necessary isolation to assure separation between each virtual machine’s computer resources.



Siemens introduces Rugged industrial notebooks for efficient automation engineering

Siemens has equipped the latest generation of its rugged, ready-to-run industrial notebooks with a multitude of practical functions for mobile engineering. The Simatic Field PG M5 programming device has been designed with pre-installed Simatic TIA Portal (Totally Integrated Automation) engineering software for fast and efficient configuration, commissioning, service and maintenance, as well as for engineering work in technical bureaus. There are two versions of the new notebook with robust hardware for mobile use in industrial plants: The Comfort version is equipped with an Intel Core i5 processor, the Advanced version with a more powerful Intel Core i7 processor. The Advanced device can also be configured with the interfaces of the previous Simatic S5 controller generation.
The new Simatic Field PG M5 has onboard all the interfaces required for the efficient engineering of industrial automation applications: For example, one Profibus and two Profinet interfaces for connection to the automation process, as well as four USB 3.0 interfaces. Simatic memory cards can be programmed directly on the industrial notebook through the Simatic Card Reader interface. The Simatic Field PG M5 is delivered ready-to-run with pre-installed Simatic engineering software. It has also been optimized for engineering with the TIA Portal – for the current and previous generations of Simatic controllers and HMI (Human Machine Interface) devices.

The high-quality Simatic Field PG M5 programming device has been developed and manufactured in Germany. It is made of specially selected materials and has been designed for use in machines and plants in a harsh industrial environments. The lightweight, robust and fully shielded cast magnesium enclosure offers protection against electromagnetic interference. Bumpers on exposed parts of the housing and rubber buffered corners protect against shocks and vibrations. This makes the device resistant to, for example, vibrations and radiation from frequency converters. The stable, retractable carry handle provides a safe grip during mobile use. The keyboard is dirt-resistant with abrasion-proof, laser-cut key labeling. The brilliant, anti-reflection, powerful 300 cd (candela) bright, high-resolution 15.6 inch full HD widescreen display offers high sharpness and luminance irrespective of the angle of view.



All-in-one automation network management software

MXview network management software is designed for configuring, monitoring and diagnosing network devices in Ethernet networks. It is specifically designed for industrial automation networks rather than enterprise class IT networks. This software is capable of automatically rendering any network topology in an easy to grasp graphical user interface and can deliver real time details on network operations.

MXview speeds up network troubleshooting by immediately displaying any device or link failure on a network, the software will also record network events which can be played back by network operators to help diagnose the root cause of a network issue.

For more information on the benefits of industrial network management software and a comparison to their enterprise class counterparts, please read our latest white paper: Industrial Network Management: Finding the Perfect Solution.
