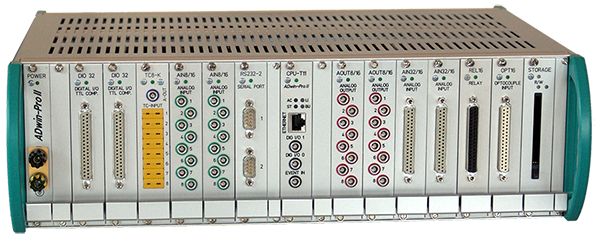

CAS DataLoggers in partnership with Jager-ADwin is pleased to announce the new T-12 processor module for ADwin-PRO II data acquisition and control systems. Featuring powerful ARM-based processor technology, the new ADwin CPU enables superior performance at real-time speed.
The Heart of ADwin-Pro II
The flagship ADwin Pro-CPU-T12 processor module offers high-speed real-time computing power and is largely software-compatible to previous versions. The ADwin CPU is the heart of each ADwin-Pro II system, executing the ADbasic instructions and accessing the inputs, outputs and interfaces of the other modules.
The T-12 processor module uses approved ADbasic code for Pro-II hardware. The CPU enables users to Insert C code into ADbasic so users can output it as ADwin code. This feature is useful to optimize processing and control applications.
T-12 Processor Technical data:
- XILINX ZYNQ™ with Dual-Core ARM Cortex-A9
- 64-Bit FPU (double-precision)
- 1 GHz processor clock
- 1 Gigabyte main memory for code and data
- Trigger input
- 2 Digital I/Os
- 1000 MBit Ethernet interface for communication to the PC
Users can utilize USB or SATA storage device on the module. The SATA device can be integrated into the module or it can be removable. Access to the memory is provided via processor module or via NFS/ SMB/FTP from the Ethernet network. Stand-alone operation without a PC is enabled using the Bootloader.
